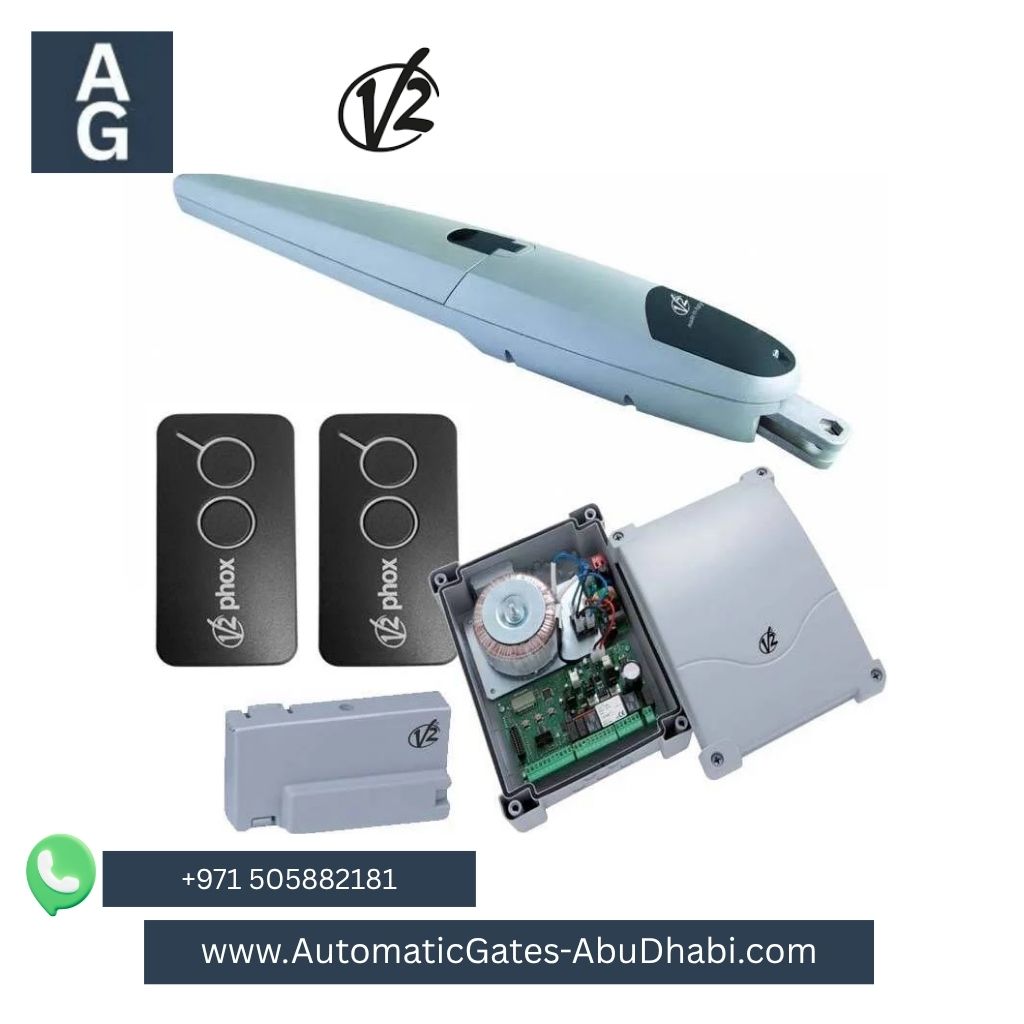

The V2 Stark6 is an advanced, irreversible electromechanical actuator designed specifically for swing gates with leaves up to 6 meters in length. It combines high performance with reliability, offering smooth and secure operation for both residential and commercial properties. This actuator is suitable for gates that require both efficiency and durability, thanks to its heavy-duty build and smart features that enhance user experience.
Key Technical Features of Stark6
The Stark6 actuator comes in two versions—24V and 230V, catering to different operational requirements. It is designed to handle gate leaves up to 6 meters in length and a maximum weight of 750 kg. The 24V model, with code 22K004, operates efficiently with a low idling current of 0.8A, while the 230V version (22K005) requires 1A at idle. Both versions are capable of handling full loads of up to 7A and 1.2A, respectively, ensuring they can work under heavy-duty conditions. The actuator offers a maximum power of 170W for the 24V model and 240W for the 230V model, which ensures reliable performance even during high-demand scenarios.
The Stark6 has a fast opening time, with a 0° to 90° movement completed in approximately 28 seconds for the 24V version and 25 seconds for the 230V version. Additionally, the actuator operates with a maximum travel range of 540mm and a consistent speed that ensures smooth, controlled movements of the swing gate. It operates optimally in a temperature range from -20°C to +55°C, making it suitable for a variety of climates. With an IP44 protection rating, it is resistant to dust and splashing water, ensuring durability in all weather conditions.
Mounting Diagram Of V2 STARK6
Robust Design for Enhanced Durability
The Stark6 actuator is built with a strong mechanical transmission system made of steel and bronze, offering maximum durability and reliability. These high-quality materials ensure the system can endure the demands of frequent operation and heavy usage, making it ideal for both residential and commercial applications. Additionally, the actuator is equipped with a mechanical stop for both the opening and closing movements, which provides added security and prevents damage from over-travel.
The aluminum release handle with a personalized key allows for easy manual operation, providing a safety feature for users in case of power failure or maintenance needs. This manual override is especially important in locations where power interruptions are frequent or where remote access may be necessary.
Versatility and Easy Installation
One of the standout features of the Stark6 is its ease of installation. The actuator comes with a large connection compartment located at the top, making wiring and setup much simpler. This design not only saves installation time but also allows for greater flexibility in how the actuator is mounted and connected to the swing gate system.
With its robust construction, high-performance motor, and ease of use, the Stark6 is the perfect solution for anyone looking for a reliable and long-lasting swing gate actuator. Whether you’re upgrading an existing gate or installing a new one, the Stark6 ensures smooth operation, security, and durability for years to come.
