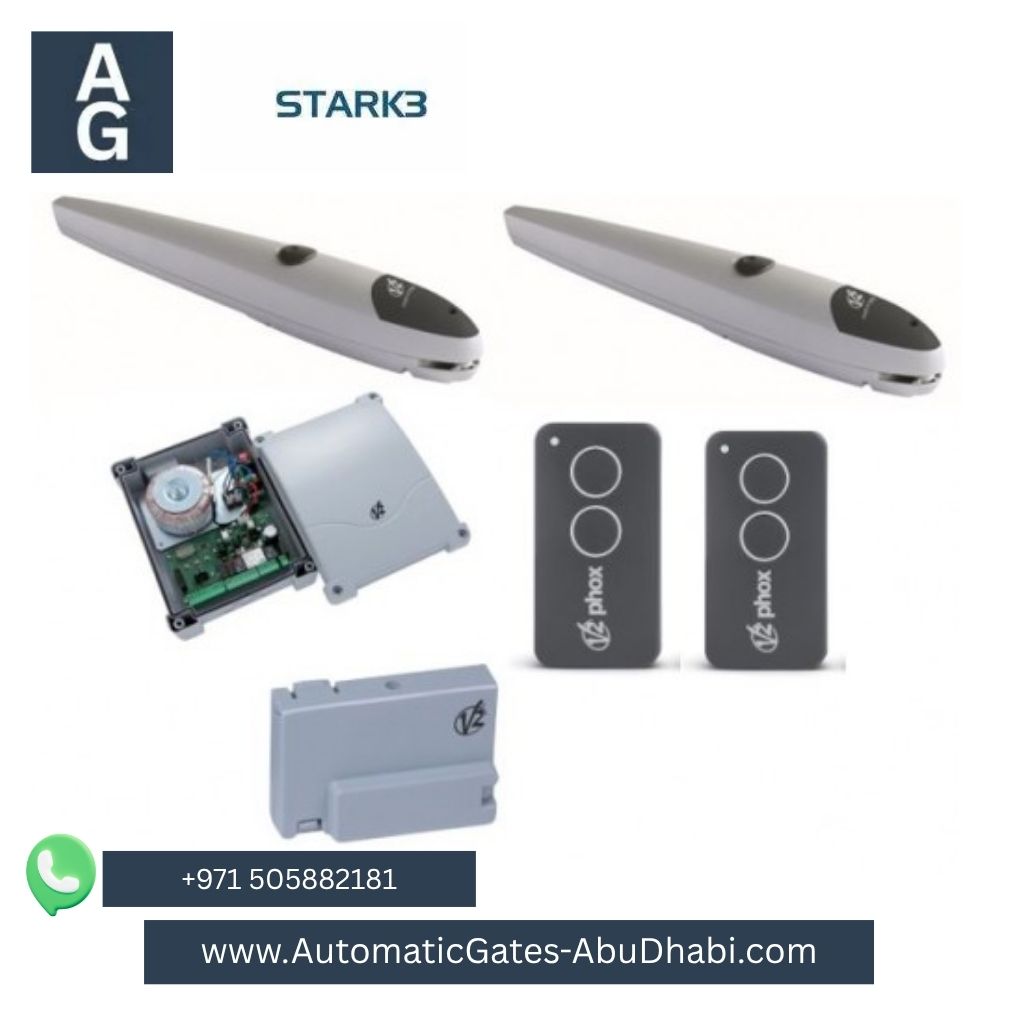

STARK3 Motor for Swing Gates

The Stark3 motor system offers an excellent solution for swing gates, providing exceptional power, durability, and ease of use. Whether you’re looking to enhance the security and convenience of a residential or commercial gate, Stark3 provides the necessary strength and features to meet your needs. This motor system is engineered for maximum performance, durability, and long-term reliability, making it one of the most popular choices in the market today. Below, we break down its key technical features, benefits, and technical strengths that set it apart from other gate motors.

Technical Features of Motor Stark3 for Swing Gates

• Maximum Leaf Length: 3 meters – Capable of handling long gate leaves, making it suitable for larger swing gates.
• Maximum Leaf Weight: 600 kg – Designed to manage heavy gates with ease, providing powerful operation for both residential and commercial installations.
• Power Supply: Available in both 230V AC (50Hz) and 24V DC versions, allowing flexibility based on installation needs.
• Idling Current: 1 A – Ensures minimal energy consumption when the motor is not actively operating.
• Full Load Current: 1.6 A (230V version) and 0.8 A (24V version) – Optimized for efficient power usage even under maximum load conditions.
• Maximum Power: 200 W – Delivers consistent power output for reliable gate movement.
• Opening Time (0° to 90°): 18.5 seconds for the 230V model and 15 seconds for the 24V model – Quick and efficient opening and closing of the gate.
• Maximum Travel: 360° – Full rotation for a wide range of swing gate movements.
• Operating Speed: 0.016 m/s for the 230V version and 0.020 m/s for the 24V version – Provides smooth and consistent movement for gate operation.
• Maximum Thrust: 2000 N – Delivers powerful force to move heavy gates.
• Working Temperature: Ranges from -20°C to +55°C, making it suitable for both hot and cold climates.
• Protection Degree: IP44 – Protects against water splashes and dust, ensuring the longevity of the motor in outdoor conditions.
• Duty Cycle: 30% for the 230V version and 90% for the 24V version – High operational efficiency with minimal downtime.
• Weight: 8 kg for the 230V version and 7 kg for the 24V version – Lightweight yet durable, making installation easier.

MOUNTING  DIAGRAM

Stark3 Strengths & Advantages

The Stark3 motor system stands out not only due to its technical features but also its robust design and user-friendly installation. Here are some of the key strengths of the Stark3 motor for swing gates:

• Mechanical Limit Stops for Opening and Closing: The motor is equipped with an opening mechanical limit stop that ensures precise gate movement, preventing the motor from overextending or stalling.
• Mechanical Closing Stop (Accessory): The closing stop is available as an optional accessory, enhancing the system’s reliability and accuracy in gate positioning.
• Single Version for Right and Left Leaves: Unlike other motors that require different models for left and right leaves, Stark3 offers a single version for both, simplifying the installation process and reducing inventory needs.
• Adjustable Fixing Brackets: The adjustable brackets allow for quicker and easier installation, reducing the time and effort needed to mount the motor.
• Dual Voltage Options: Stark3 is available in both 24V and 230V versions, giving users the flexibility to choose the best power supply for their specific needs. This versatility makes the motor adaptable to various gate setups and environments.

Why Choose Stark3 for Your Swing Gate Motor Needs?

When selecting a swing gate motor, the Stark3 provides the perfect blend of power, durability, and advanced features. Its ability to support large gates with heavy weight loads while maintaining quick and smooth operation makes it a preferred choice for a variety of applications. The availability of both 24V and 230V versions allows for more flexibility in installations, while the motor’s robust design ensures long-lasting reliability. With its simple and efficient installation process, the Stark3 is ideal for both DIY enthusiasts and professional installers.

The Stark3 is designed to provide peace of mind by incorporating features like mechanical stops, adjustable brackets, and multiple voltage options, all in one powerful motor. Whether you’re looking to enhance the security of your home or upgrade a commercial entryway, the Stark3 swing gate motor system ensures safe and reliable operation.
