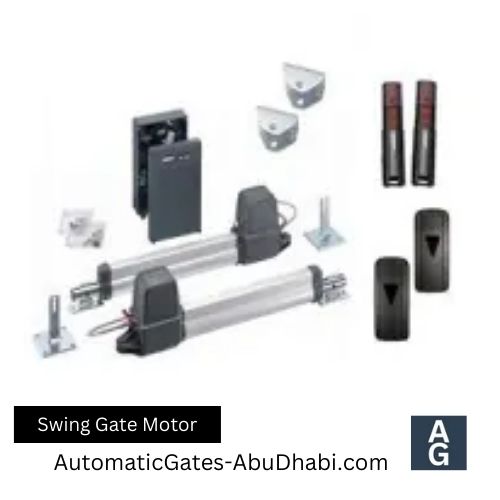

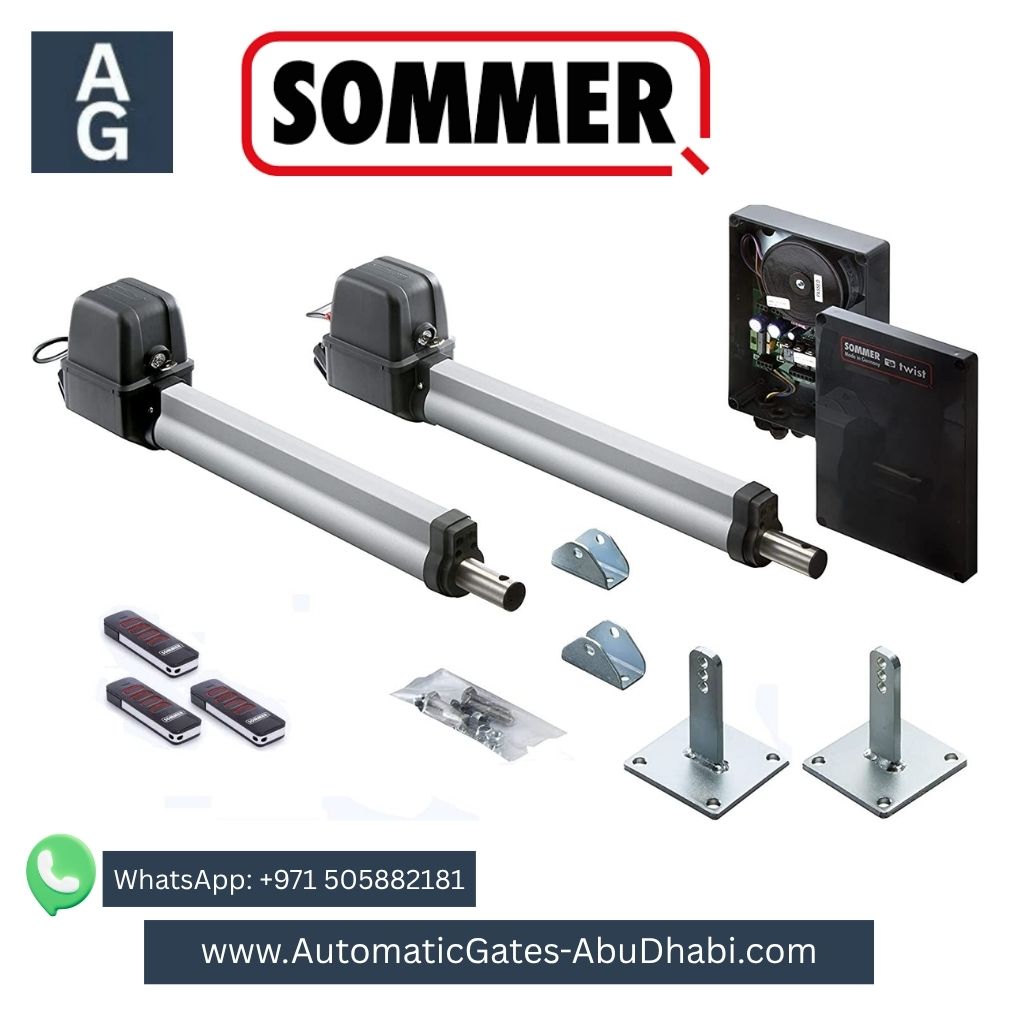

SOMMER Twist 200 E swing gate operator kit for 2-wing gates, including two motors, control board, remote controls, and installation accessories.

SOMMER Twist 200 E Swing Gate Motor

The Sommer Twist 200 E Swing Gate Motor Kit is a reliable, high-performance solution for gates up to 300 kg, offering easy installation and durable operation. It features a 2000 N pulling force, IP44 rating, and operates within -30°C to +70°C, with modern radio technology for seamless integration.

د.إ2,200

In Stock

Optional Services:

Product price: د.إ2,200
Total options:
Order total:
Category: Tags: , , , , ,

The Sommer Twist 200E Swing Gate Motor Kit offers a reliable, powerful, and versatile solution, this comprehensive kit includes everything required for easy installation, making it perfect for residential or commercial properties with gates up to 300 kg. With its sleek anthracite finish, it complements any property while providing high-quality performance. The system operates at a frequency of 868.95 MHz and supports modern radio technology for seamless integration into your gate automation.

Top Features:

  • Versatile Operation: Can be used for both DIN left and DIN right gate installations.
  • Radio Technology: Equipped with SOMup4 radio receiver, compatible with 40 memory positions, ensuring easy control from a distance.
  • Weather Resistant: The system has an IP44 rating, ensuring durability against dust and water.

Powerful and Durable Design

Designed for maximum efficiency, the Twist 200E Gate Motor boasts impressive technical specifications that make it perfect for challenging environments in Abu Dhabi. It can handle gate weights up to 300 kg, with a maximum pulling force of 2000 N, making it ideal for heavy-duty applications. The system operates reliably in extreme temperatures, from -30°C to +70°C, ensuring uninterrupted performance in the harsh Abu Dhabi climate.

Technical Specifications:

  • Max. Gate Weight: 300 kg
  • Max. Pulling Force: 2000 N
  • Operating Temperature Range: -30°C to +70°C
  • Max Gate Opening Angle: 120°
  • IP44 Protection Rating
  • Radio Frequency: 868.95 MHz (SOMloq2 compatible)

Complete Kit for Hassle-Free Installation

The Twist-200E Kit includes all the necessary components for a quick and easy setup. With two powerful gate operators, a control unit, radio receiver, and handheld transmitters, you’ll have full control over your gate system in no time. The included blink light adds an extra layer of visibility for safety and convenience. Whether you’re upgrading your gate or installing a new one, this kit ensures a smooth installation process.

Take the Next Step

Upgrade your property’s gate system today with the Twist 200E by Sommer, Motor Kit. Perfect for heavy gates and designed to withstand the elements, it provides excellent value and performance. Don’t miss out—purchase now at automaticgates-abudhabi.com and enjoy fast, reliable shipping and support.
For more information on similar products, check out gateautomation.co.uk.

FAQs

What are the primary advantages of the Twist 200 E swing gate motor?
The operator is known for its German engineering, which ensures durability and reliability. It features a compact and universal design, allowing it to be used for both left and right-opening gates, and for single or double leaf installations. The system also includes a controlled soft run that reduces speed at the end positions, which minimizes wear and tear on both the gate and the operator.
How does the SOMMER Twist 200 E handle high temperatures?
This model "Sommer Twist 200-E" is designed to withstand extreme temperatures ranging from -30°C to +70°C, making it well-suited for the hot climate in the UAE. Its robust construction and quality components ensure it operates reliably without a loss in performance, even under intense heat. The IP44 protection rating of the motor and IP65 rating of the control unit also provide excellent protection against dust and water.
What safety measures are built into the Twist 200 E swing gate operator?
The system incorporates electronic motor monitoring to continuously measure the forces and automatically reverse the gate if it detects an obstruction. It also features automatic locking to prevent the gate from being pushed open, adding an extra layer of security. For enhanced safety, it can be connected to external devices like safety photocells and warning lights.
What happens if there's a power failure with the SOMMER Twist 200 E?
In the event of an electrical outage, the operator includes a mechanical emergency release that can be activated with a key. This allows you to open or close the gate manually, ensuring you're never locked in or out. The manufacturer also notes that there is no battery backup solution available for this specific range.
Are spare parts and support for the SOMMER Twist 200 E readily available in the UAE?
Yes, finding parts for this product in the UAE is straightforward. There are authorised suppliers and service providers in the region who can provide original spare parts and offer professional maintenance or repair services. This local availability ensures the longevity of your gate system.
