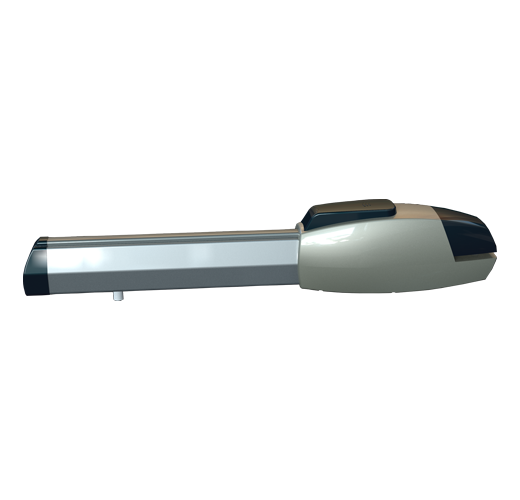

L8 Swing Gate Opener Motor – China
The Carin L8 Swing Gate Opener is designed to automate gates up to 3.5 meters in length and 500kg in weight, offering reliable power transmission and enhanced stability. Perfect for both residential and commercial properties.
د.إ1,650
In Stock
The Carin L8 Swing Gate Opener combines cutting-edge technology with robust construction to deliver a powerful and reliable solution for automating gates in residential and commercial properties. With a self-locking spindle for maximum stability, this opener ensures secure and smooth operation, even for large gates. It supports gate leaves up to 3.5 meters and 500kg in weight, making it ideal for both medium-sized and larger gate installations.
Key Features:
- Max Gate Leaf Length: Up to 3.5 meters for large gate applications.
- Max Gate Leaf Weight: Up to 500kg for heavy-duty gates.
- Open Speed: 1.6 cm/s, for efficient gate movement.
- Self-Locking Spindle: Provides stability and prevents unwanted gate movement.
- Protection Class: IP45 for long-lasting durability and weather resistance.
With a massive motor-gear unit, the L8 Swing Gate Opener ensures reliable power transmission, perfect for both residential properties and commercial establishments. The design withstands harsh weather conditions, operating efficiently in temperatures ranging from -20°C to +70°C. Easy installation and maintenance make this system an excellent choice for anyone looking to upgrade their gate automation system.
Technical Data Sheet:
| Specification | L8-DC-400 | L8-AC-600 | L8-AC-400 | L8-AC-600 |
|---|---|---|---|---|
| Model | L8-DC-400 | L8-AC-600 | L8-AC-400 | L8-AC-600 |
| Power Supply | AC110/220 | AC110/220 | AC110/220 | AC110/220 |
| Motor | 24V | 24V | 110/220 | 110/220 |
| Current | 4A | 4A | 2A/1A | 2A/1A |
| Absorbed Power | 50W | 50W | 200W | 200W |
| Max Leaf Length | 2.5M | 3M | 3M | 3.5M |
| Max Leaf Weight | 400KGS | 400KGS | 500KGS | 500KGS |
| Open Speed | 1.6CM/S | 1.6CM/S | 1.6CM/S | 1.6CM/S |
| Thrust | 1400N | 2500N | 1400N | 2500N |
| Stroke | 400MM | 600MM | 400MM | 600MM |
| Working Temp. | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C |
| Duty | 0.95 | 0.4 | 0.95 | 0.4 |
| Protection Class | IP45 | IP45 | IP45 | IP45 |
| Capacitor | – | – | 25uf/8uf | 25uf/8uf |
| Open Angle | 0 ~ 120 | 0 ~ 120 | 0 ~ 120 | 0 ~ 120 |
| Limit Switch | Limit Switch | Limit Switch | Limit Switch | Limit Switch |
- Heavy-Duty Performance: Handles gates up to 3.5 meters and 500kg.
- Efficient Operation: Open speed of 1.6 cm/s for fast, reliable gate movement.
- Self-Locking Spindle: Ensures maximum stability and security.
- Durable and Weather-Resistant: IP45 protection class for longevity.
- Ideal for Commercial and Residential Use: Versatile for a wide range of properties.
