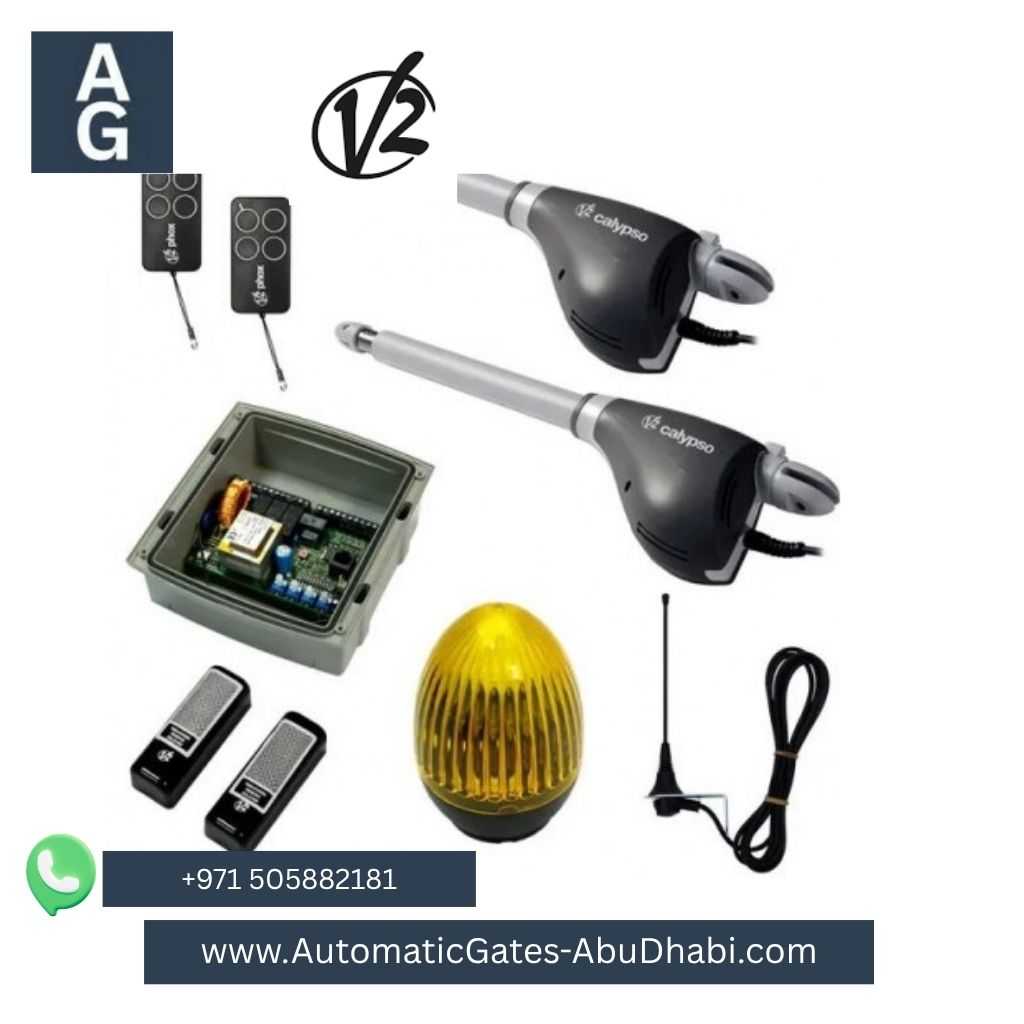

V2 CALYPSO 400 swing gate motor kit, including two motors, control board, flashing light, remote controls, and antenna.

V2 CALYPSO Swing Gate Motor – Abu Dhabi

CALYPSO Motors provide reliable swing gate automation with powerful performance, handling gate leaves up to 4m and 500kg. With quick opening times and durable features, they are perfect for residential and commercial use in Abu Dhabi. Contact us today for installation!

د.إ2,700

In Stock

Optional Services:

Product price: د.إ2,700
Total options:
Order total:
Category: Tags: , , , , ,

Choose your required models:
V2 CALYPSO 400 22G001 230V – for leaves up to 2.5 m and 400 Kg
V2 CALYPSO 500 22G003 230V – for leaves up to 3 m and 500 Kg
V2 CALYPSO 600 22G016 230V – for leaves up to 4 m 600kg

V2 CALYPSO Motors are designed to offer powerful and reliable operation for swing gates, delivering smooth and efficient performance. The CALYPSO range offers different models suitable for gates with varying sizes and weights. With the versatility to handle leaves up to 4 meters long and a weight capacity of 500 Kg, these motors are ideal for residential, commercial, and industrial applications. CALYPSO motors ensure durability and long-lasting functionality, making them a top choice for automated gate systems in Abu Dhabi.

Model: CA43 locking system with 400mm spindle with a maximum opening angle of 100º is recommended for gates up to 2.5m in length.
Model: CA53 locking system with 500mm spindle with a maximum opening angle of 120º is recommended for gates up to 3m in length.

Key Technical Features of V2 CALYPSO Motors

  • Maximum Leaf Length: Up to 4 meters (depending on the model)
  • Maximum Leaf Weight: Up to 500 Kg
  • Power Supply: 230V – 50 Hz
  • Idling Current: 0.8 A
  • Full Load Current: 1.2 A
  • Maximum Power: 250 W
  • Opening Time (0° ÷ 90°): Between 22 and 30 seconds, depending on the model
  • Maximum Travel: Up to 2300 mm
  • Operating Speed: 0.016 m/s
  • Maximum Thrust: Varies by model, reaching up to 500 N
  • Working Temperature: From -30°C to +50°C
  • Protection Degree: IP44 (water and dust resistance)
  • Duty Cycle: 30%
  • Weight: Varies by model from 6.5 kg to 7.1 kg

Strengths of V2 CALYPSO Motors

  • Versatile Compatibility: The CALYPSO motors come in a single version that works for both right and left leaves, simplifying installation and reducing inventory complexity.
  • Efficient Release System: A practical release system allows easy manual operation in case of power failure.
  • Multiple Sizes: The motors are available in different versions to accommodate gate leaves up to 2.5m (400 version), 3m (500 version), and 4m (600 version).
  • Durability and Performance: With robust power and protection features, CALYPSO motors deliver consistent performance in a variety of environmental conditions, from extreme cold to high heat.

FAQs

What are the key benefits of using this gate automation system?
The operator is an irreversible electromechanical actuator, which means it provides strong resistance against manual force, enhancing your property’s security.1 It features a single, versatile version that is compatible with both left and right-opening gates, simplifying the installation process.2 Its design focuses on being both practical and durable, offering a long-term solution for gate automation.
How does the V2 Calypso swing gate operator handle the high temperatures in Abu Dhabi?
The system is built to operate reliably within a wide temperature range, specifically from -30°C to +50°C.3 This robust performance ensures it functions consistently even during the peak summer heat in the region. The motor’s internal components and casing are engineered to withstand environmental stresses without compromising on its efficiency or longevity.
Can I rely on the V2 Calypso automation kit for my gate's safety features?
Yes, the control unit is equipped with several important safety functions.4 It can be connected to photocells to detect any obstacles in the gate's path, and it is capable of reversing motion to prevent accidents.5 The system also has a sensitive force detection mechanism, ensuring the gate operates safely and stops if it encounters resistance.
What happens if the power supply to my V2 Calypso motor is cut?
In the event of an electricity outage, the system includes a practical and easy-to-use manual release mechanism.6 This allows you to disengage the motor and operate the gate by hand, ensuring you can always gain access to or exit your property. The design prioritises maintaining security and convenience, even without mains power.
Where can I find reliable installation and support for the V2 Calypso in Abu Dhabi?
It is highly recommended to seek out certified installers in the region to ensure your system is set up correctly and safely. Many local suppliers offer professional installation services with a one-year warranty on their work.7 They also provide local support, making it easy to get genuine spare parts and maintenance when needed.
